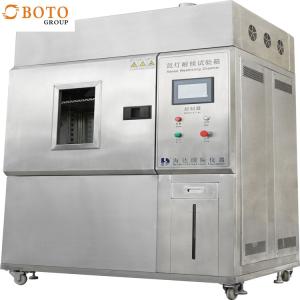

Xenon Lamp Weather Resistance Aging Test Chamber

Ask Lasest Price
Brand Name :	BOTO
Model Number :	BT-E711-1
Certification :	CE ISO
Price :
Payment Terms :	L/C, T/T
Supply Ability :	15 Set/Sets per Month
Delivery Time :	5-25 days

Add to Cart

Product Details
Company Profile

Xenon Lamp Weather Resistance Aging Test Chamber

^{Xenon Lamp Weather Resistance Aging Test Chamber}

^{Product Description}

^{GENERL SPECIFICATIONS}

^{Packaging Dimensions: (WxDxH) 1650*1700*2200mm}

^{Power supply source: three-phase, 380V±10%, 50Hz (can be appointed)}

^{Gross Weight: 450kg}

^{HS Code: 8479899990}

^{MAIN PARAMETER}

^Item	^{Specification}
^{Internal Dimension (WDH)}	^{800800800mm}
^{External Dimension (WDH)}	^{145015002000mm}
^{Inner chamber material}	^{SUS 304 # Stainless Steel, Anti-rust, easy to clean}
^{Outer chamber material}	^{Stainless steel}
^{Chamber Temperature}	^40±3℃
^{Temperature Uniformity}	^≤3℃
^{Blank panel temperature}	^65±3℃
^{Humidity Range}	^50%-90%
^{Irradiated intensity}	^{0.35±0.02w/m²at 340nm}
^{Xenon lamp power}	^{6.5KW water-cooled xenon lamp x 1pc}
^{Control system}	^{PLC controller, touch screen}
^{Distance from specimen to arc center}	^{250~300mm, Effective exposure area 6400cm2}
^{Max. Sample dimension}	^{200*90mm Thickness<20mm}
^Filter	^{Daylight filter}
^{Door seal}	^{Silicone rubber seal}
^{Temperature sensor}	^{PT100 high precision temperature sensor}
^{Air circulation system}	^{Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity}
^{Cooling ventilator}	^{Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system}
^{Cooling ventilator}	^{France Tecumseh compressor}
^Power	^{AC380V, 50Hz, three phase}
^{Safety Protection}	^{Over heat protection for fan,} ^{Over load protection for cooling system,} ^{Over pressure protection for cooling system,} ^{Over temperature protection,} ^{Over heat and over flow protection for water pump,} ^{Leakage protection, Water shortage protection,} ^{Auto stop after failure warning}

Production Process

^{COMPANY INTRODUCTION}

^{FACTORY AND OFFICE DISPLAY}

^{PRODUCTION LINE}

^{COOPERATIVE PARTNERS}

^{Our Services}

^{During the whole business process, we offer Consultative Selling
service.}

^{1) Customer inquiry process:}

^{Discussing testing requirements and technical details, suggested
suitable products to customer to confirm. Then quote most suitable
price according to customer requirements.}

^{2) Specifications customize process:}

^{Drawing related drawings to confirm with customer for customized
requirements. Offer reference photos to show the products
appearance. Then, confirm the final solution and confirm final
price with customer.}

^{3) Production and delivery process:}

^{We will produce the machines according to confirmed PO
requirements. Offering photos to show production process.}

^{After finish production, offer photos to customer to confirm again
with the machine. Then do own factory calibration or third party
calibration(as customer requirements). Check and test all the
details and then arrange packing.}

^{Deliver the products in confirmed shipping time and inform
customer.}

^{4) Installation and after sale service:}

^{Defines installing those products in the field and providing
after-sales support.}
