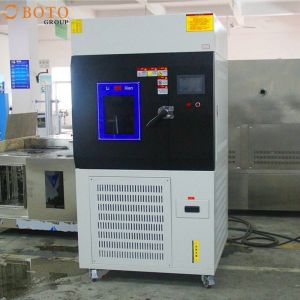

Xenon Lamp Aging Chamber Lab Instrument Xenon Arc Test Chamber
DIN50021 B-XD-120
Description:
Xenon lamp weatherproof test chamber equipment can be used for the
selection of new materials, improvement of existing materials or
assessment of changes in the durability of materials after changes
in composition. The device can well simulate the changes of
materials exposed to sunlight in different environmental
conditions. The equipment tests the light resistance of materials
by exposing them to ultraviolet (UV), visible and infrared light.
It uses filtered xenon arc lamps to produce a full spectrum of
sunlight with maximum compatibility with sunlight. Xenon arc lamps
with proper filtration treatment are the best way to test the
sensitivity of products to ultraviolet and visible light in the
longer wavelength range of direct illumination or sunlight through
glass. When you expose your product to direct sunlight outside, it
experiences maximum light intensity for only a few hours a day.
Even so, the worst exposure occurs only during the hottest weeks of
summer.
Xenon lamp test chamber is divided into three kinds according to
the test standards and methods, air-cooled xenon lamp (LP/SN-500),
water-cooled xenon lamp (LP/SN-500), bench xenon lamp (TXE), the
difference lies in the test temperature, humidity, accuracy, time,
etc. It is an indispensable testing instrument in the aging test
chamber series.
Box structure:
External box material: All of them are made of high quality
(t=1.2mm) A3 steel plate CNC machine tool processing, shell surface
is sprayed with plastic treatment, more bright and clean, beautiful
Material: imported advanced stainless steel (SUS304)
Insulation material: rigid polyurethane foam + glass fiber
Temperature and humidity circulation system: special air
conditioning low noise long shaft fan motor, high and low
temperature resistant stainless steel multi-wing impeller, in order
to achieve the intensity convection vertical diffusion cycle

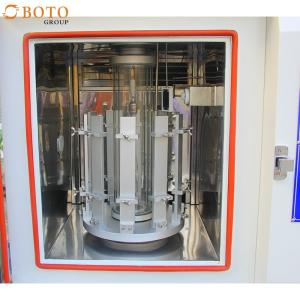

Test placement: Xenon lamp with built-in guide rail, articles flat.
The hub type xenon lamp uses a fixture to fix the sample, and the
sample is a flake specification item.
Sealing: A double-layer high temperature and high tension sealing
strip is used between the door and the box to ensure the airtight
of the test area
Door handle: Use no reaction door handle, easier to operate
Casters: High quality fixed PU movable wheels are used at the
bottom of the machine
There is an air duct interlayer at the back of the studio, which
distributes heating humidifiers, circulating air blades and other
devices. The test chamber has a single door, which is sealed with
age-resistant silicone rubber. The water is supplied by an
underside water tank, and the water level is automatically
controlled.
productive process:
It has the following performance characteristics:
1. Adopt full-spectrum xenon lamp luminescent tube;
2, a variety of filter system for choice;
3, rain spraying function;
4. Relative humidity control.
5, test chamber air temperature control system;
6. Sample fixer with irregular shape;
7. Cheap and fine xenon arc lamp tube.
8, xenon lamp aging test chamber has the characteristics of easy
installation, convenient use and simple daily maintenance.
product description:
Model | B-XD-120 | B-XD-225 | B-XD-408 | B-XD-800 |
Internal Dim(W*H*D) | 45x60x45 | 50x75x60 | 60x85x80 | 100x100x80 |
| External Dim(W*H*D) | 107x145x68 | 120x164x92 | 122x169x112 | 162x184x112 |
| Temperature range | RT+10℃~70℃ |
| Humidity range | 50%~90%RH |
| Radiation intensity of xenon lamp | 550W/m² |
| Spectral wavelength region | 290nm-800nm |
| rainfall time | 0-9999／min |
| Total power xenon lamp | 2KW/6KW |
| type of cooling | forced air cooling／water-cooling |
| Interior | SUS#304Stainless steel plate |
| External material | Coating or SUS#304Stainless steel plate |
Power Source | AV:220V/380V 50/60Hz |
Produce Making Details:
Our company:
Packing/Shipping:
Our Services
During the whole business process, we offer Consultative Selling
service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested
suitable products to customer to confirm. Then quote most suitable
price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized
requirements. Offer reference photoes to show the proucts
appearance. Then, confirm the final solution and confirm final
price with customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO
requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again
with the machine. Then do own factory calibration or third party
calibration(as customer requirements). Check and test all the
details and then arrange packing.
Deliver the products in confirmed shipping time and inform
customer.
4)Installation and after sale service:
Defines installing those products in the field and providing
after-sales support.
